ANRD series automatic disc filter

summary

The ANDD series disc filter is divided into two basic units: ANDD (1) and ANDD (2). The filter unit is composed of a group of polypropylene plastic discs with grooves. The groove edges on the adjacent discs form intersections to intercept the solids in the water. Because of the functions of surface interception and deep condensation, the filtering effect is greatly improved.

◎ Working state: under the action of spring force and hydraulic force, the filter disc is

Tightly pressed together, when the water containing impurities passes through, the impurities will be intercepted.

◎ Backwashing status: control the valve to change the water flow direction to release the disc

The nozzle in the center of the disc sprays in the tangential direction; The disc rotates and the intercepted solids are washed out.

characteristic

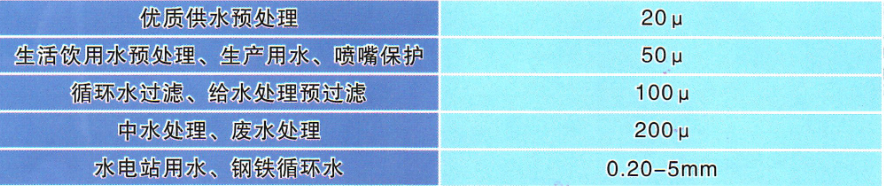

◎ Standard model: users can choose according to their needs, flexible and flexible, and strong interchangeability. ◎ Accurate filtration: 20 μ、 fifty μ、 one hundred μ、 two hundred μ、 0.20-5mm, etc. ◎ Efficient backwashing: high-speed and thorough backwashing can be completed in 20 seconds (time adjustable). ◎ Full-automatic operation, continuous water outlet: in the filter set, the backwashing process alternates

Automatic switching between operation, working and backwashing status

Continuous effluent.

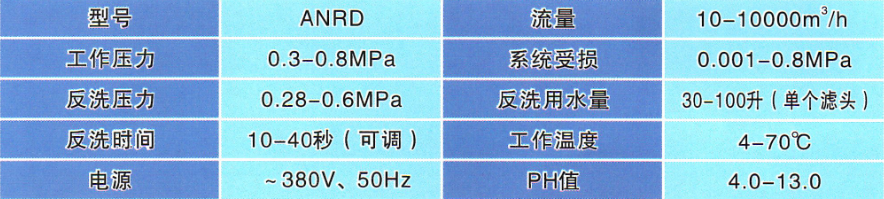

Main technical data
